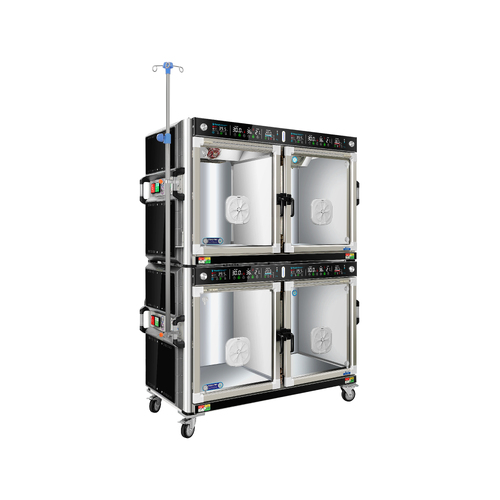

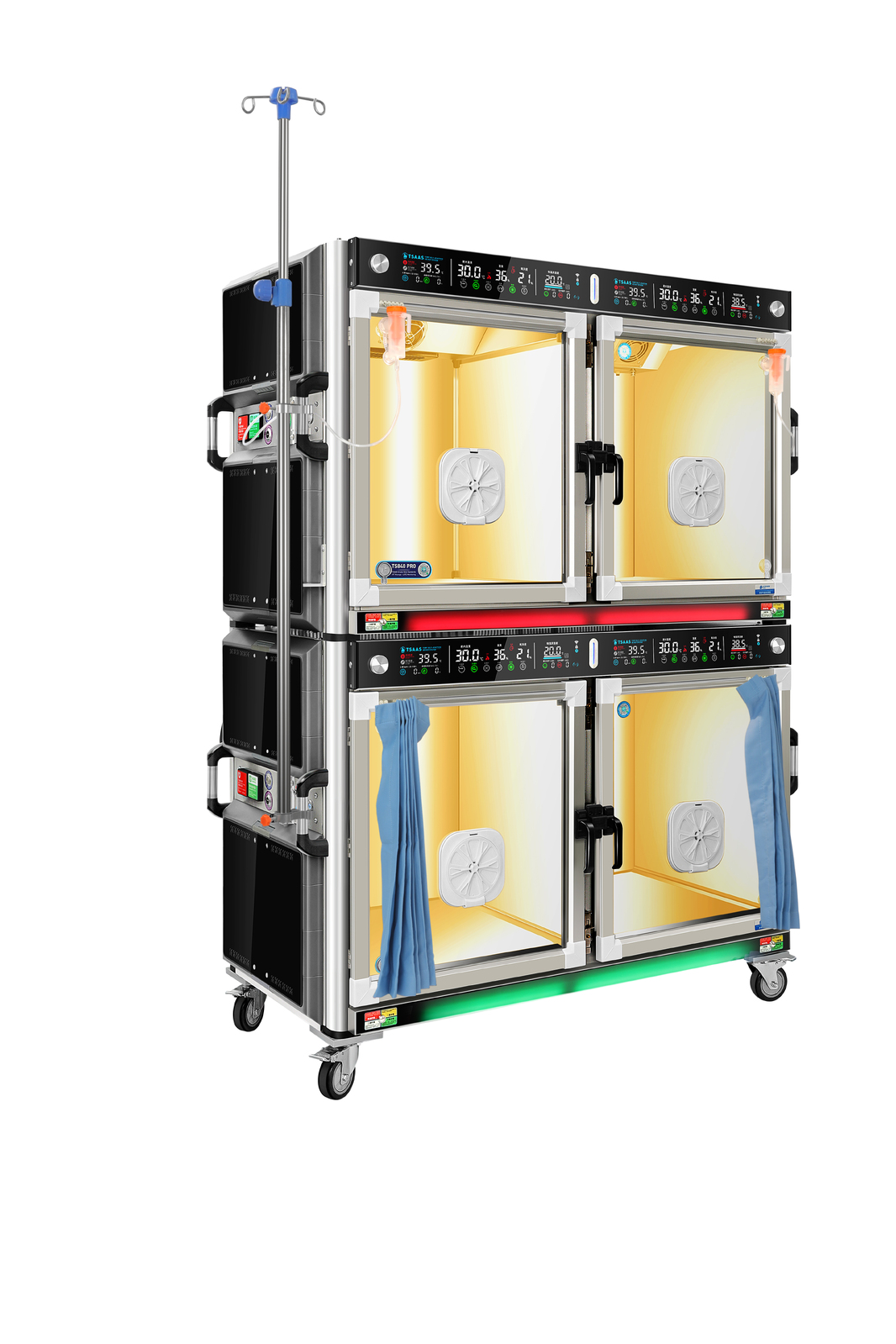

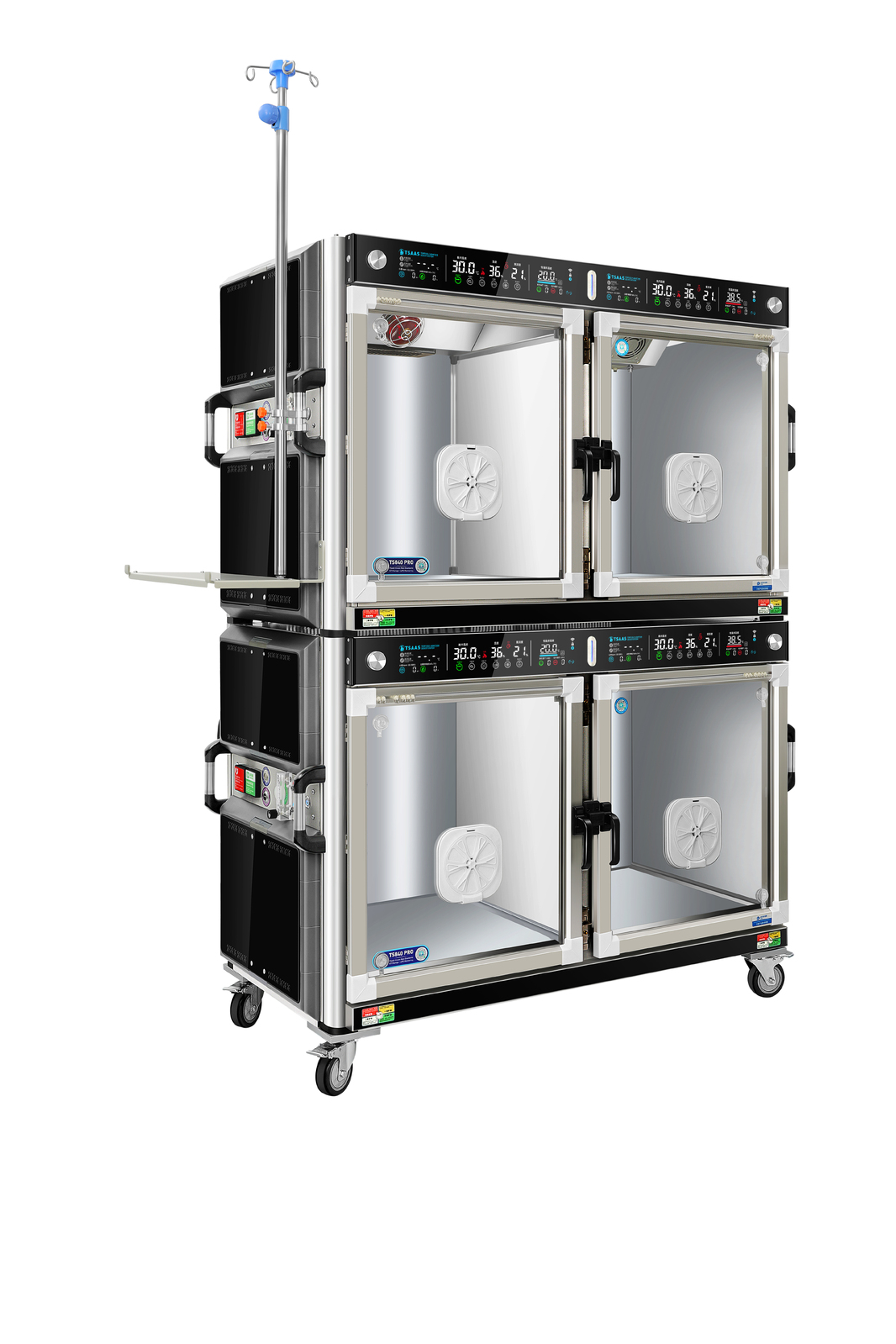

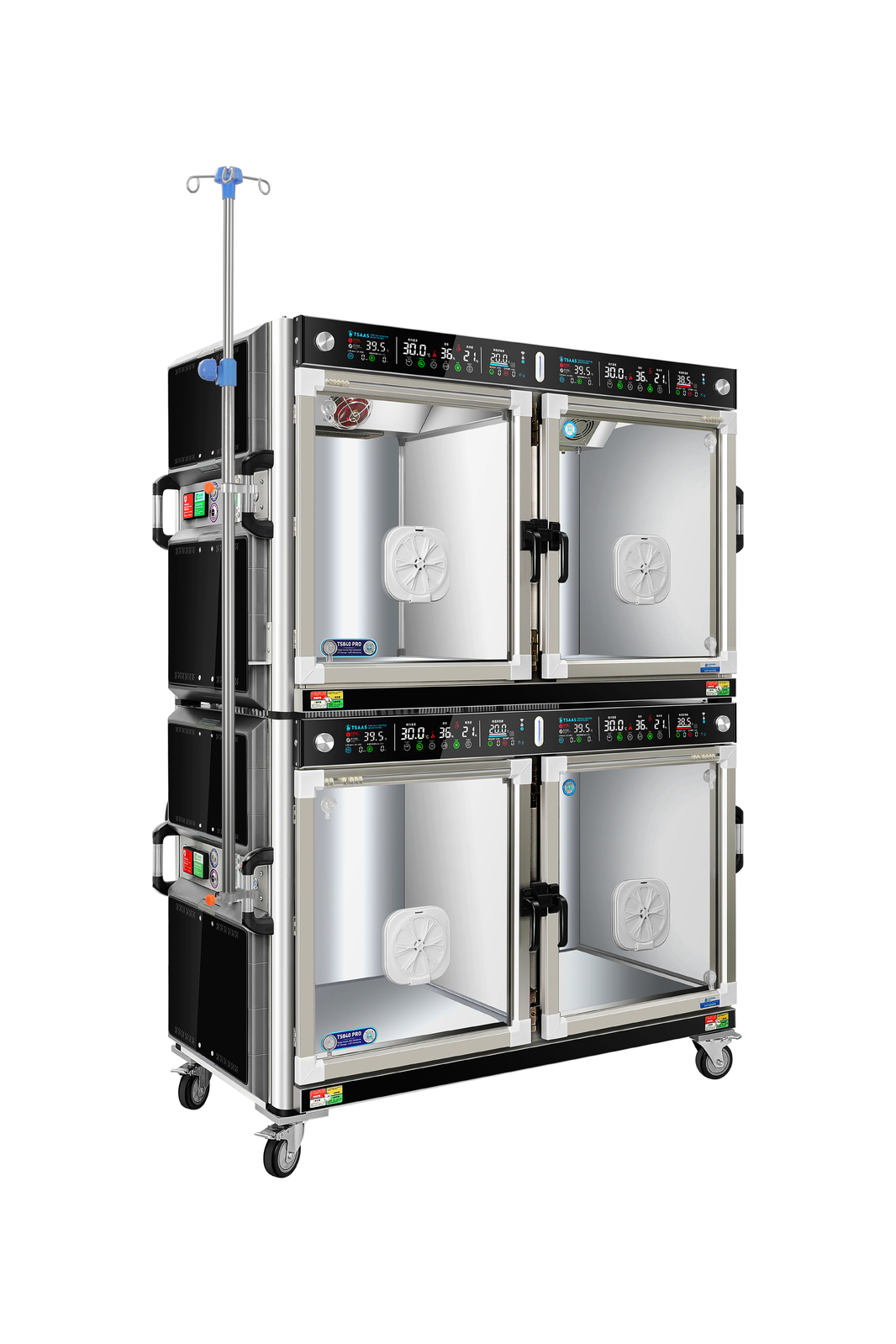

Kanistar UC2008D 2 x Units of Large Pet Intensive Care Unit ICU Incubator

Please Note: for sale is a Double Stack, there are 2 x UC2008 stack together.

ICU is a tool used to improve quality of life for patients around the world. Kanistar is here to re-define the meaning of that care with our new interactive and innovative ICU line.

The purpose of any animal monitoring cage is to provide optimal care in hopes of aiding and speeding up recovery time for animal patients. Kanistar ICU line does just that. At the machines most basic functions, it creates an environment of stable temperature and humidity, helping to provide a comfortable environment for the animal. These basic functions are great for newborn dogs and cats, especially born by caesarean section, as they cannot regulate their own body temperature and are confronted by a high mortality rate caused by hypothermia. A warm and comfortably controlled environment helps to increase their survival rate.

With advanced diagnosis, monitoring and treatment equipment and technology, our ICU helps to observe the qualitative and quantitative condition of your patient continuously and dynamically. The typical animal ICU machine on the market fails to close the gap between what we know human ICUs can do. In our redefining of the animal ICU, we hope to close the gap from being a simple enclosed space that provides temperature and humidity settings and offering a machine that can support multiple medical treatments, such as infusions and nebulization of medication, an oxygen therapy enclosure, the ability to purify the ambient air inside the containment, and more. Enjoy the animal ICU, redefined, in Kanistar’s TSAAS intensive care units.

UC2008 Kanistar New Generation of Pet Intensive Care Unit Pet Hospital Equipment with Intelligent Control System TSAAS System

TSAAS-Temperature Self-Adaption Adjustment System
This new type ICU cabinet have the intelligent control system which could adjust the temperature according to the animal's body temperature and preset temperature, without manual operation.

Semi-Conductor Temperature Control System
TSAAS series use semiconductors for heating and cooling instead of air compressors, ensure that there is almost no noise during heating and cooling to avoid pets' rest affected by noise.
The way of top heating and refrigeration is reserved, to ensure that the temperature in the ICU cabinet can be adjusted quickly in the process of heating or cooling.

Dual Air Circulation System
TSAAS have two air circulation systems, so users can choose to use external circulation or internal circulation fresh air system according to actual needs.

Atomization Therapy
Tsaas can install an atomizer outside to atomize the drugs used to pets and improve the treatment effect.

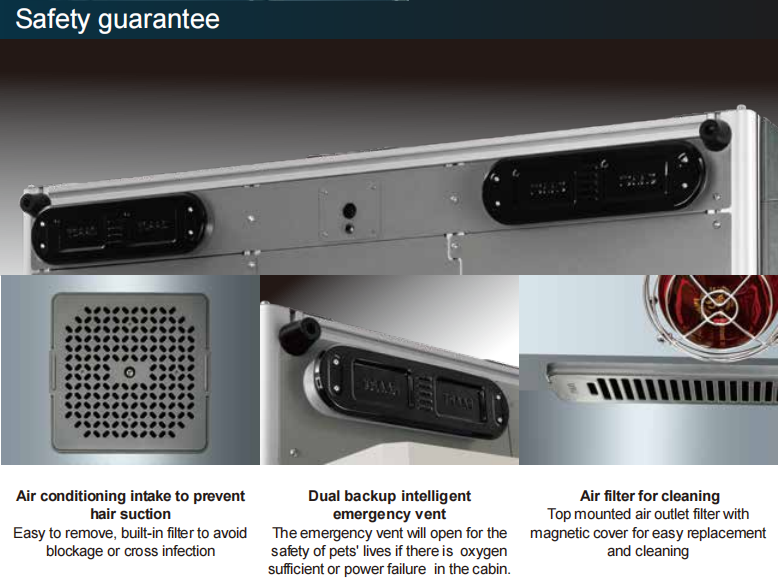

Emergency Vent
Tsaas has good airtightness to ensure that pets are completely isolated from the outside world.
When unattended, in order to avoid when power failure and other special circumstances, pets are in a dangerous situation.

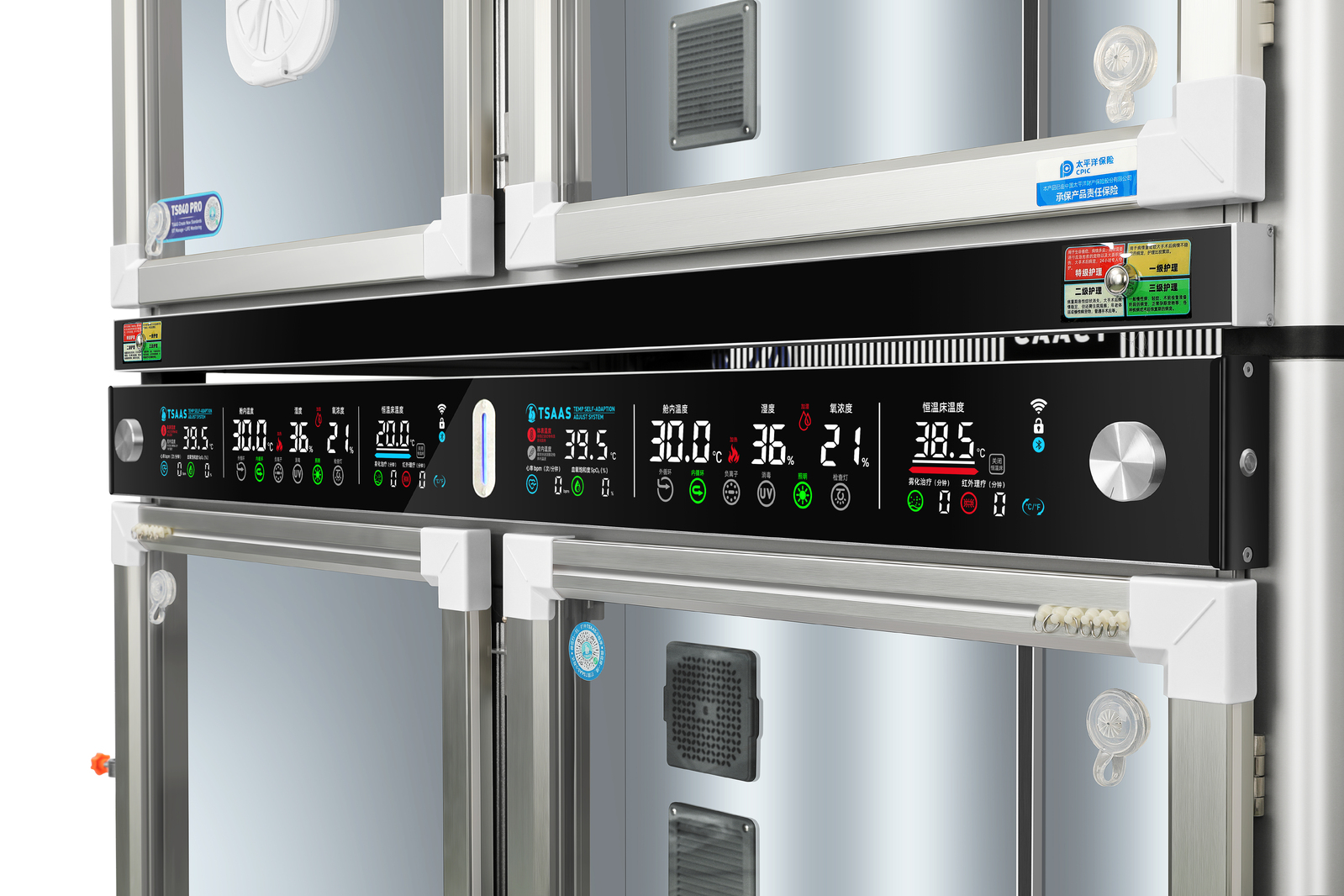

The LED Screen for Users
Tsaas have a big LED screen, almost all the icons above can be touched, so users can accurately control the temperature or humidity.

Built-in Nebulizer
In many cases, especially with exotic and avian patients, where transfusion is not easy, nebulization through respiratory system is one of the most efficient treatment ways to administer drugs. This is why we found it necessary to include a built-in nebulizer on our TSAAS ICUs. Biomedical engineering research has shown that drugs with atomized particles of about 3-6 microns can enter the bronchi, and drugs with atomized particles of less than 2 microns can enter the alveoli. TSAAS ICU has a built-in air compression medical nebulizer, which produces drug atomized particles below 0.5 microns, creating an ultra-fine mist for pets to inhale. There is little to no drug residue at this size of micron, and the rate of utilization of the administered drug increases, making it very suitable for the treatment of diseases of the lower respiratory tract of pets. The medical nebulizer is installed outside the ICU inner cabin to reduce noise and aiding in a quieter environment for the pet to recover.

Accurate Temperature Control

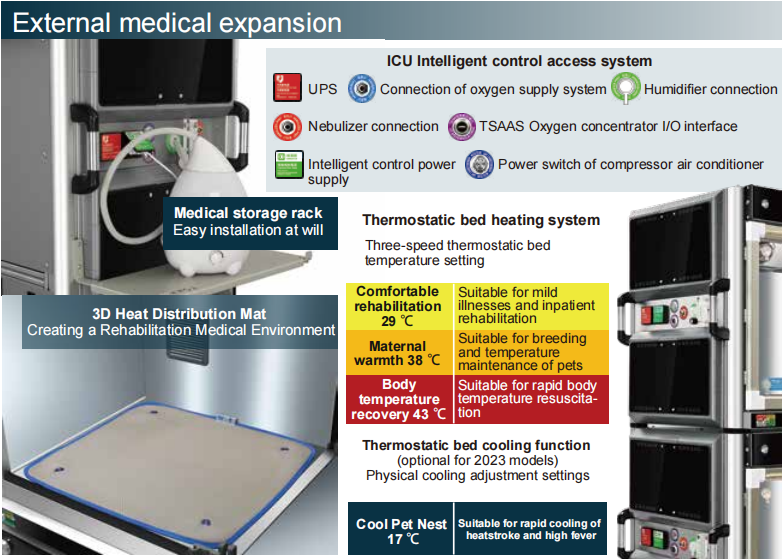

The TSAAS ICU heating system is equipped with an overhead double duct circulating heating system and a thermostatic bed system to ensure uniformed temperature in the cabin; Relying on the semi-conduction system in thermostatic bed, TSAAS ICU can provide quick cooling at the bottom, where the patient can have their full abdomen in contact with the floor to help cool the body.

Oxygen Containment

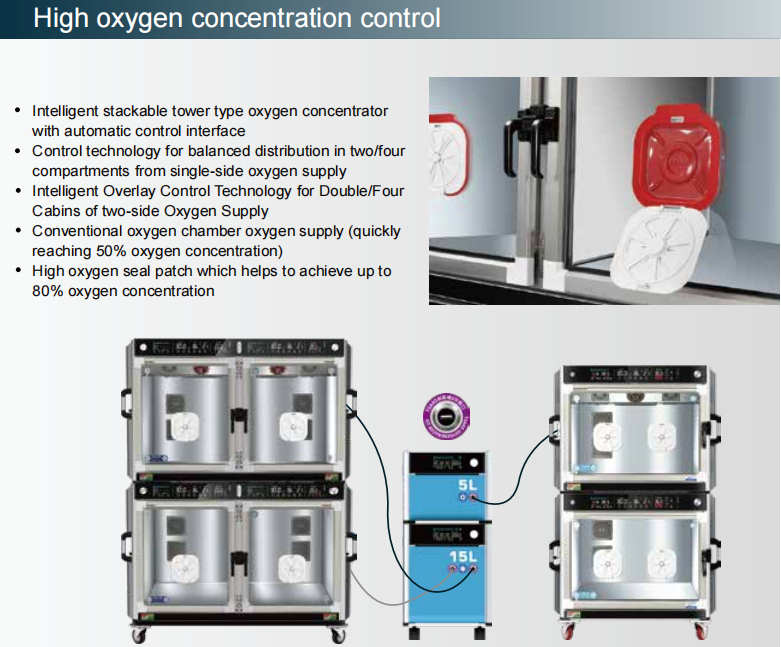

For proper oxygen treatments, an ICU must provide an airtight compartment, precise oxygen control, and a safe ventilation system. Our TSAAS units do just that to help you achieve a desired level greater than or equal to 40% oxygen concentration. The airtight cabin can easily reach 60% oxygen concentration within one hour at a flow rate of 10L/min (93%+). The emergency vent automatically opens when the oxygen concentration is lower that 18% or there is a power outage.

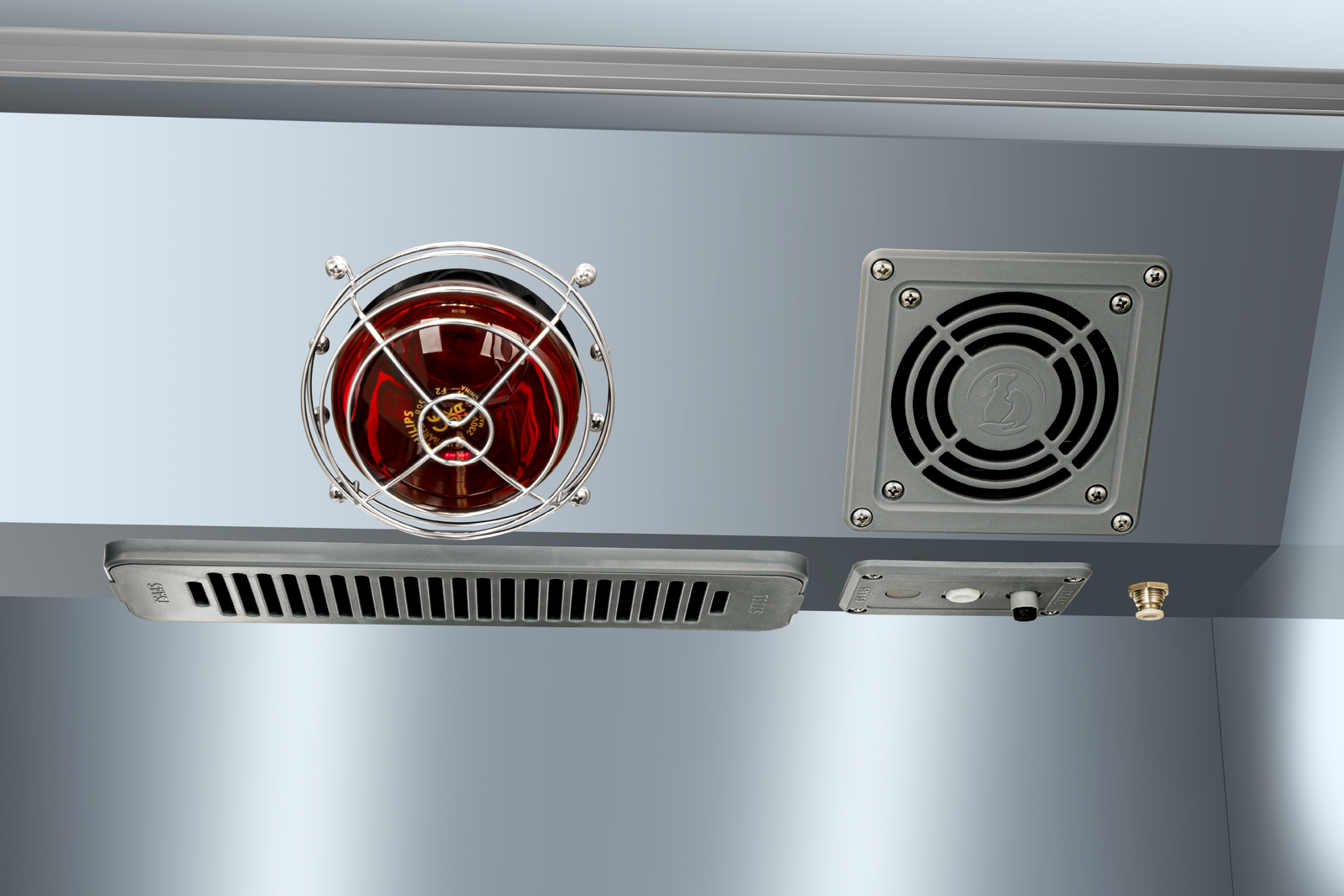

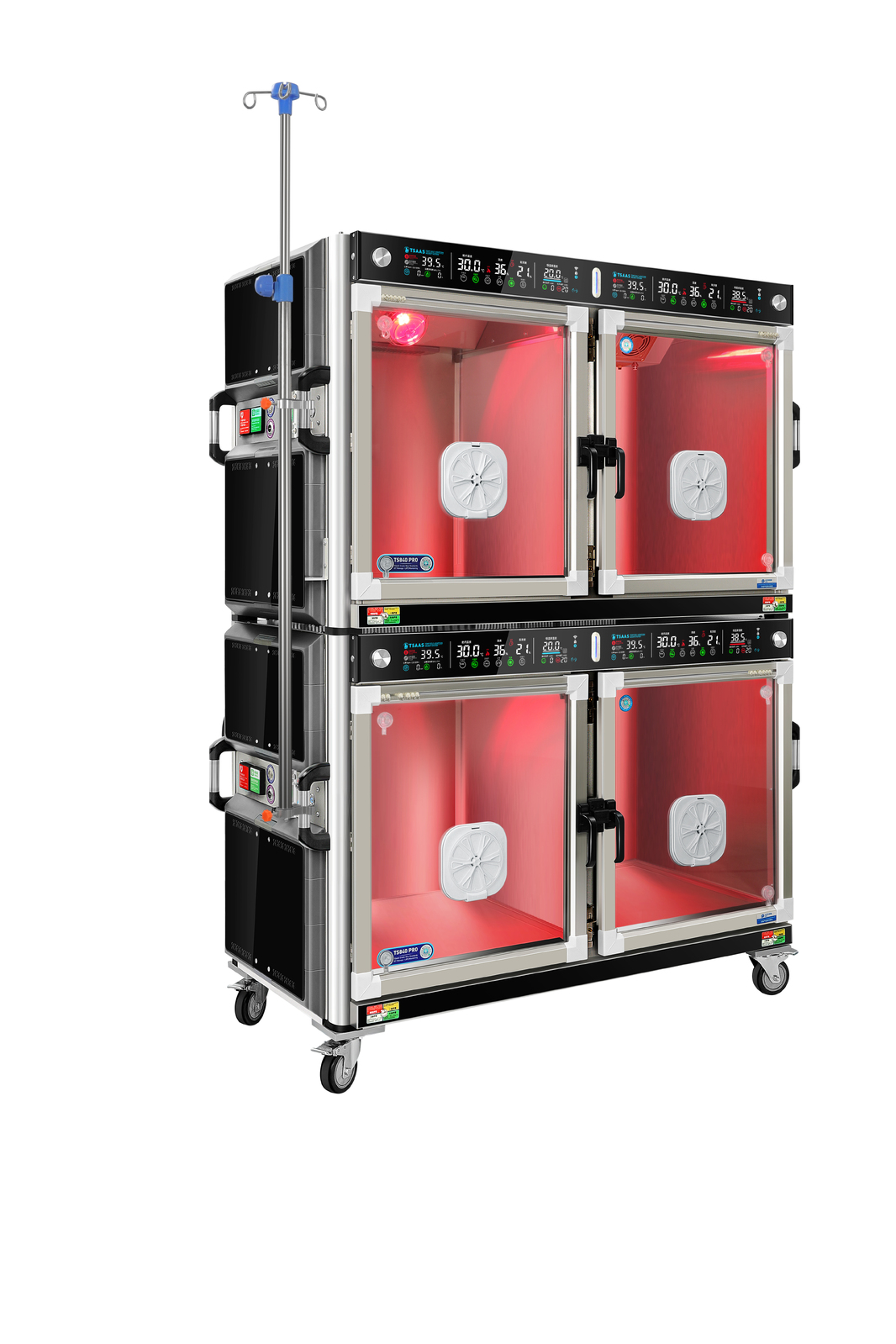

Infrared Physiotherapy
The infrared physiotherapy light is an added bonus to this model. Research has shown that infrared light helps tissue temperature increase, capillaries dilate, blood flow increases, healing of wounds accelerates, tissue cell vitality increases. It improves metabolism, acts as an anti-inflammatory treatment and helps create an overall sterile and improved environment.

Triple Purification System
The first is an easy-to-use ultraviolet disinfection light. This light uses ultraviolet rays with a wavelength of 200nm to 280nm.  Ultraviolet rays at this frequency have been proven to eradicate bacteria and effectively kill microbial cells. Second, each unit is equipped with negative ion purification. High-concentration negative ion generators in a closed treatment chamber can significantly reduce odor pollution and help support the immune system of your pet patients. As a third measure of purification, we have equipped the machine an external cycle fresh air system. When oxygen supply is not required in treatment, the “external cycle”  function can be turned on to help refresh and improve the cabin air quality.

Relative Humidity Controls
Whether heating or cooling the enclosure, our ICU can maintain adequate relative humidity levels for your pet patients. Generally, a comfortable range for most animal patients is 45%-55% relative humidity. With our ICU machine you can achieve high temperatures with low humidity to help meet the requirements needed for some treatments. You can also achieve an environment with high temperature and high humidity in cases where 65%-75% relative humidity is needed.

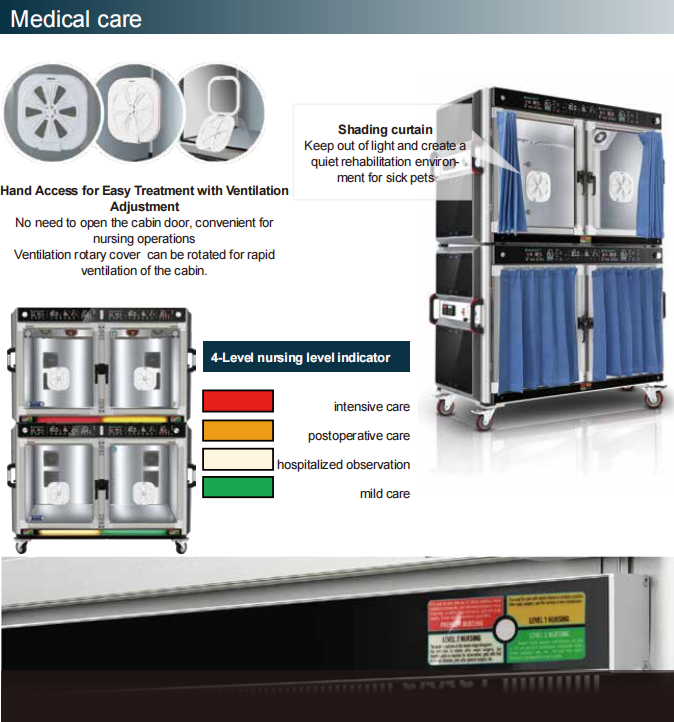

Nursing Level Indicator
Found at the bottom of every unit, is a nursing level indicator. There is a  4-stage lighting that helps caretakers visually identify if their patient is in need. The varying levels of how severe the illness or injury is can be indicated by these lights. Level 1 is White. Level 2 is a Green color. Level 3 is an Amber color. These first three colors indicate what condition the patient is in based on their current needs. The fourth light is a red light. This light is used if a patient reaches critical condition. More details on the nursing level indicator light can be found in our suggested application form.

Our TSAAS ICUs can monitor the changes of animal body temperature 7 days a week, 24 hours a day. The monitor can alarm according to the changes of animal body temperature or automatically adjust the ICU according to the preset temperature. This function takes our unit from your basic incubator setup to an intelligent automatic inductive medical  device (available on Pro model).

TSAAS ICUs can remotely monitor the overall status of the machine, monitor the temperature of the patient, and remotely control all the function of the machine. All vet, technicians and  nurses can efficiently and effectively monitor all ICUs With a mobile phone or tblet for timely and accurate responses to the Pet’s needs.



Key Features

1. Infrared Physiotherapy
2. Built-in Medical Nebulization
3. Oxygen Concentration Control
4. Humidity Control (External Humidifier Needed)
5. Overhead Double Circulation Heating System

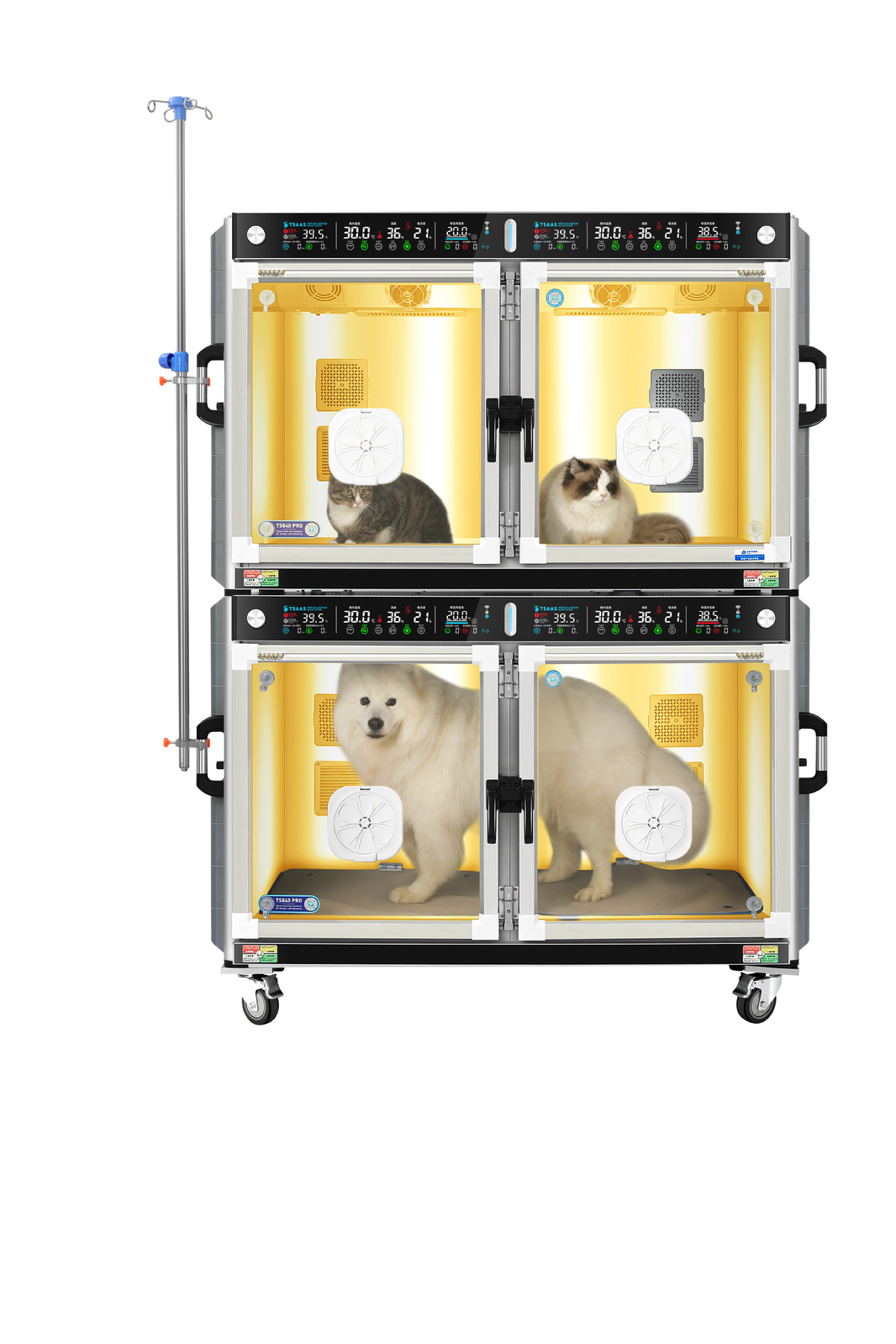

6. Adjustable Amber Light for Comfortable Illumination
7. White Examination Light
8. Self-Adaptive Temperature Control System (PRO Model Only)

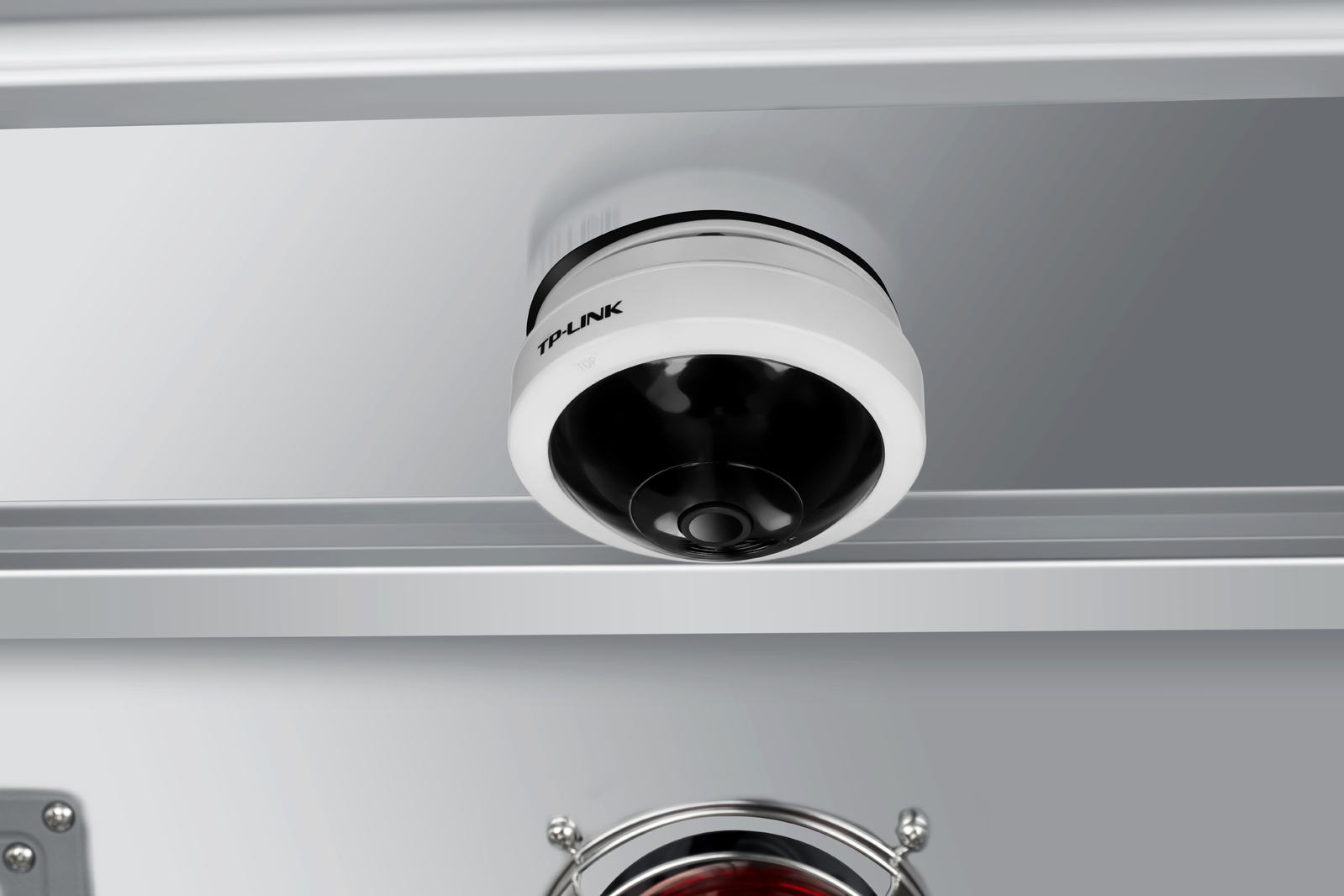

9. IP Camera for Real-time Observation on Smart Devices (Pro Model&Optional)
10. Large Transparent Door to Easily Check Animal Status
11. Double Insulated Body for Better Heat and Oxygen Preservation
12. Triple Air Purification System -Ultraviolet, Negative Ion, and External Circulation

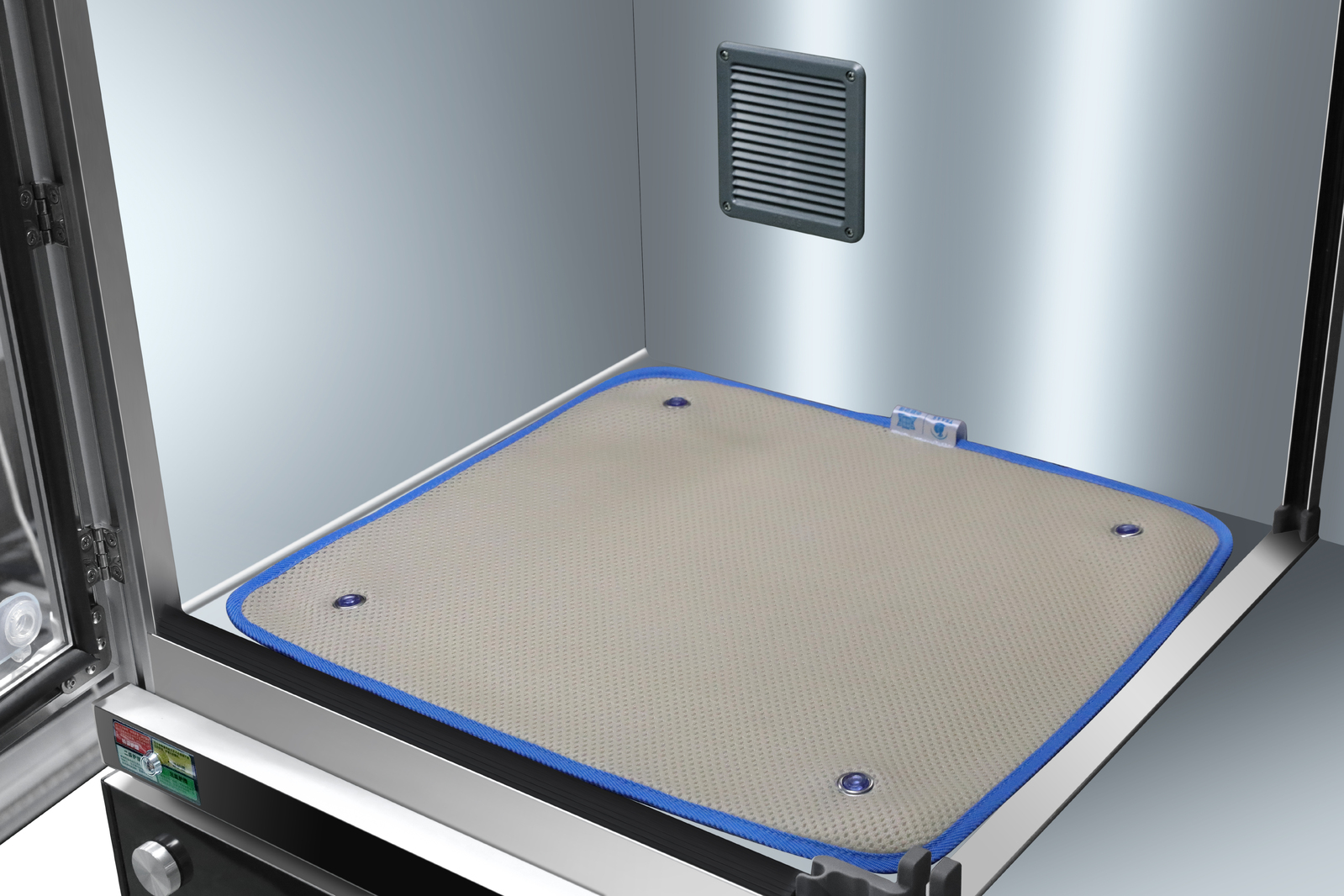

13. Thermostatic Bed with Mutual Accurate Temperature Control
14. Aluminum frame on Front Door for Better Oxygen Sealing
15. Food/Medical Grade Stainless Steel Inner Body for Effective Sanitation Management
16. Large Touch Screen for Ease of Use and to Aide in More Visible Alerts
17. (Artificial Intelligence) Controlled Alarm System for Machine Errors like Abnormal Temp inside the Cabin, Abnormal Humidity, Abnormal Oxygen Concentration, and Abnormal Temp of the Thermostatic Bed
18. Hand Access for Easy Treatment with Ventilation Adjustment
19. Programmed Power Supply for External Devices like Humidifier
20. Uninterrupted Power Supply for Other Add-on Devices like Vital Sign Monitor
21. Oxygen Sealing Transfusion Portal
22. Infusion Post Fixture(optional)
23. Control Interface of Oxygen Generator
24. Easy to Stack Design, Two Levels for Better Space Efficiency.
25. Stack-on Detachable Wheel Base for Mobility
26. Interactive Indicator Light Band at the Front Bottom
27. Enclosing Large Enough to Accommodate a Large Dog Standing Comfortably
28. Power Switch of Air Conditioner
29. Port for Compressor of Nebulizer
30. Humidifier Port
31. Flowmeter of Oxygen
32. Oxygen Port

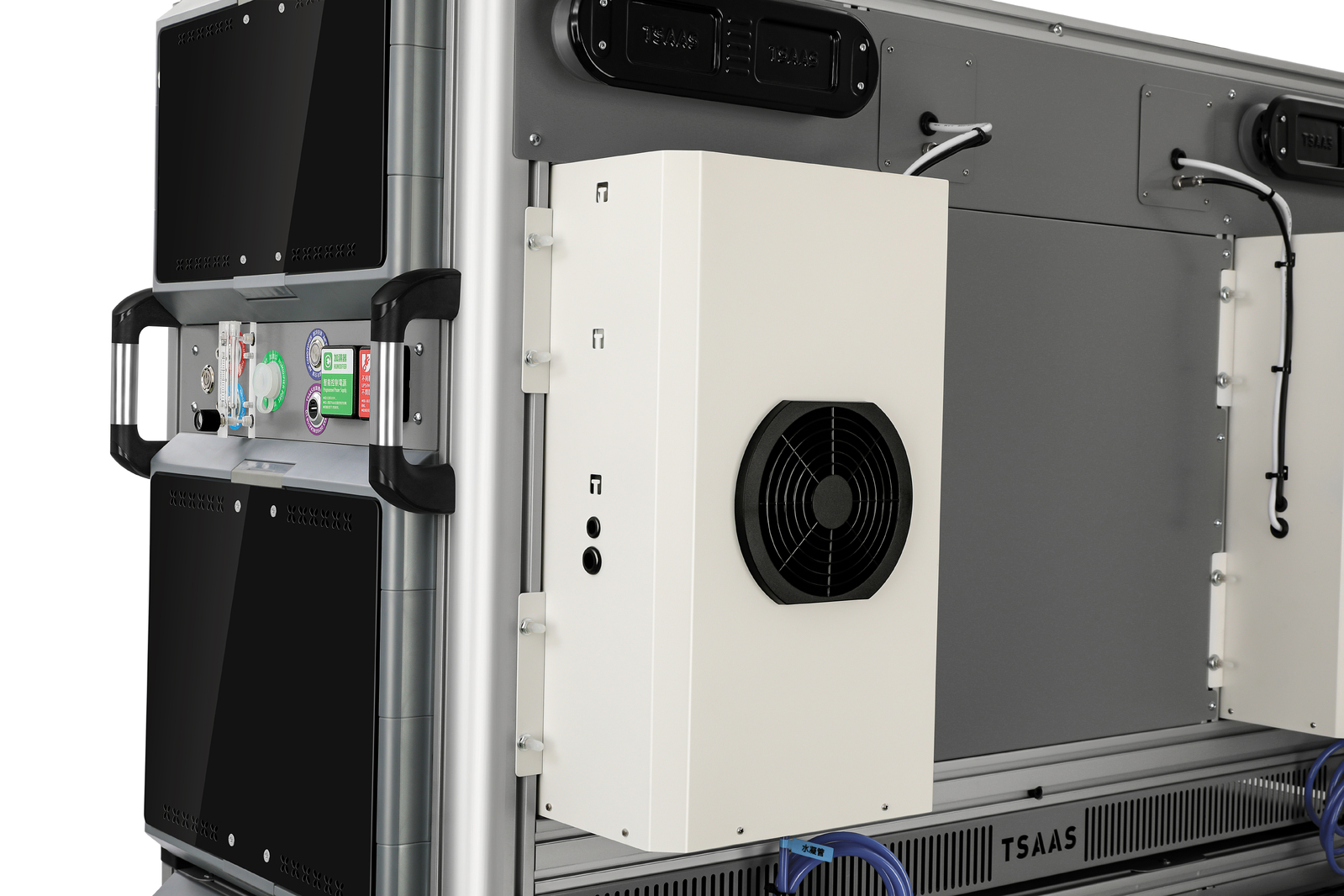

33. Air Conditioner



Each UC2008D (2 x UC2008) includes following parts

• 4 x Airconditioning
• 4 x Curtain
• 8 x 3D Heat Distribution Mat

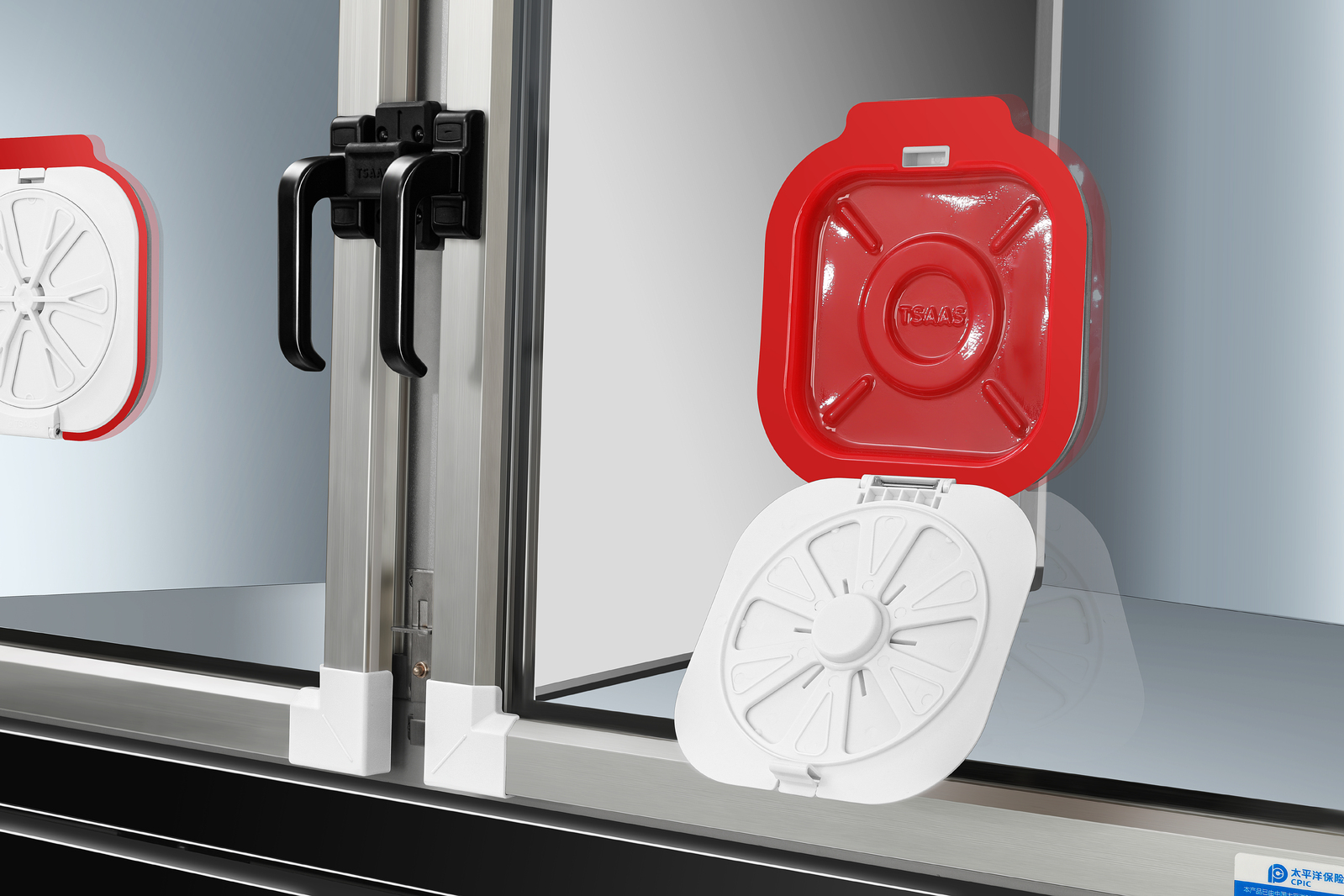

• 16 x High Oxygen Seal Patch
• 4 x External Humidifier
• 4 x External Nebulizer
• 2 x IV Pole with Clamp
• 2 x Medical storage rack
• 1 x Base with Castors

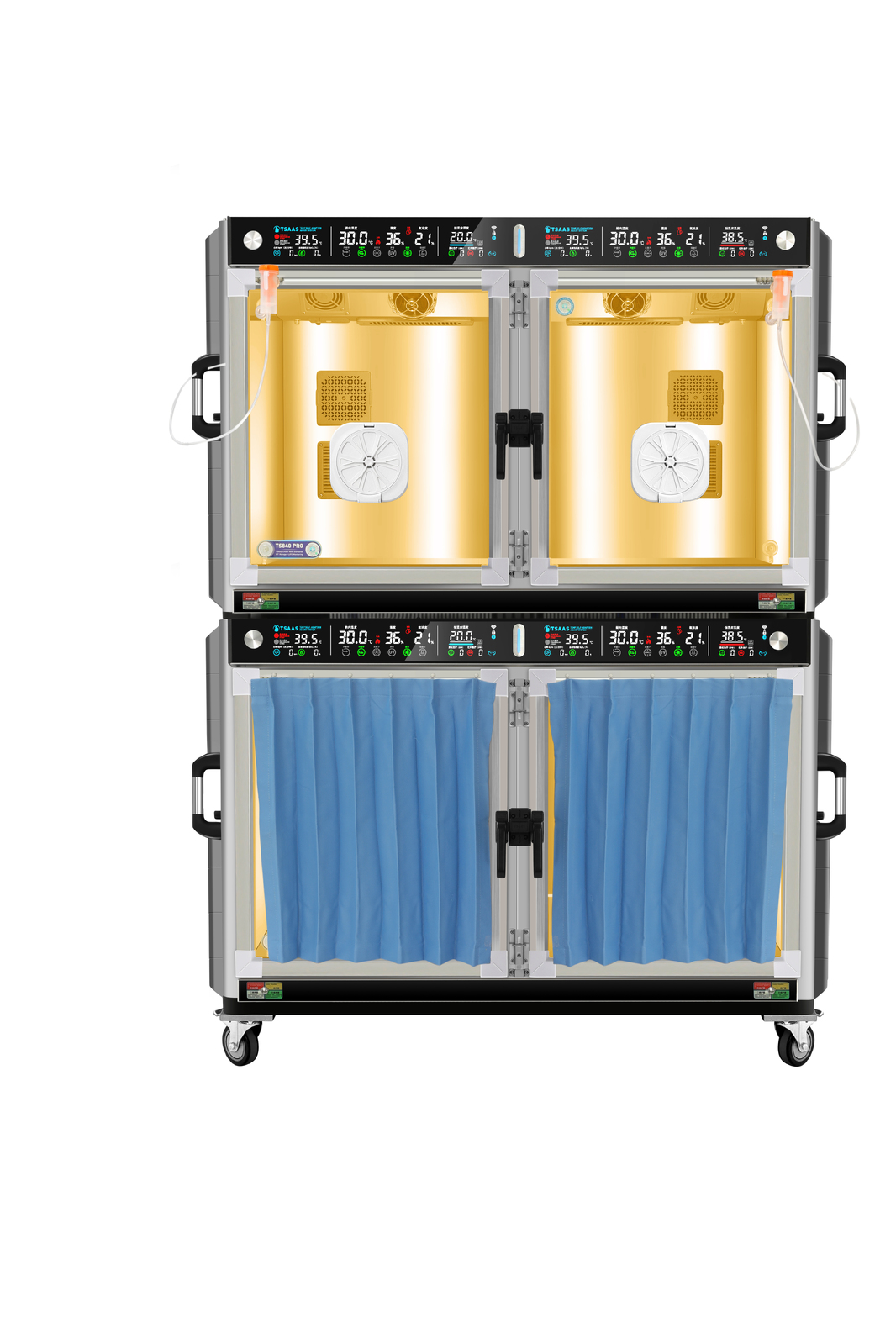

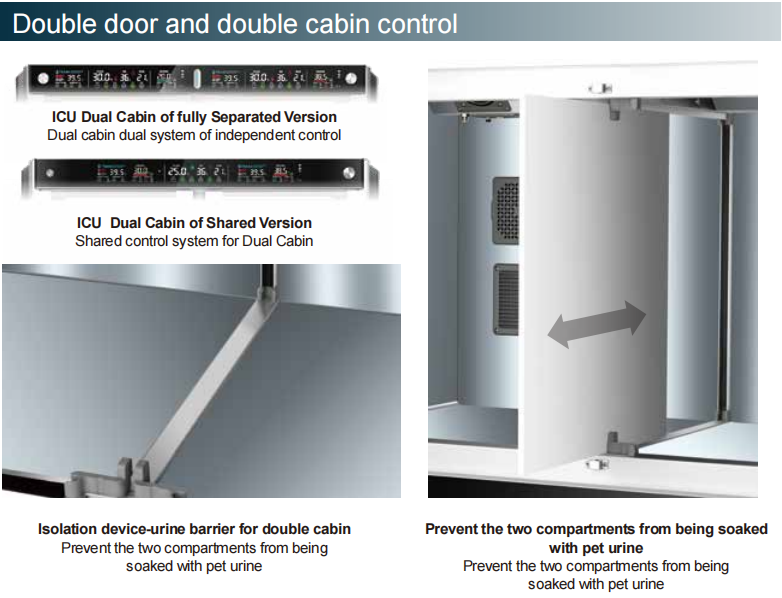

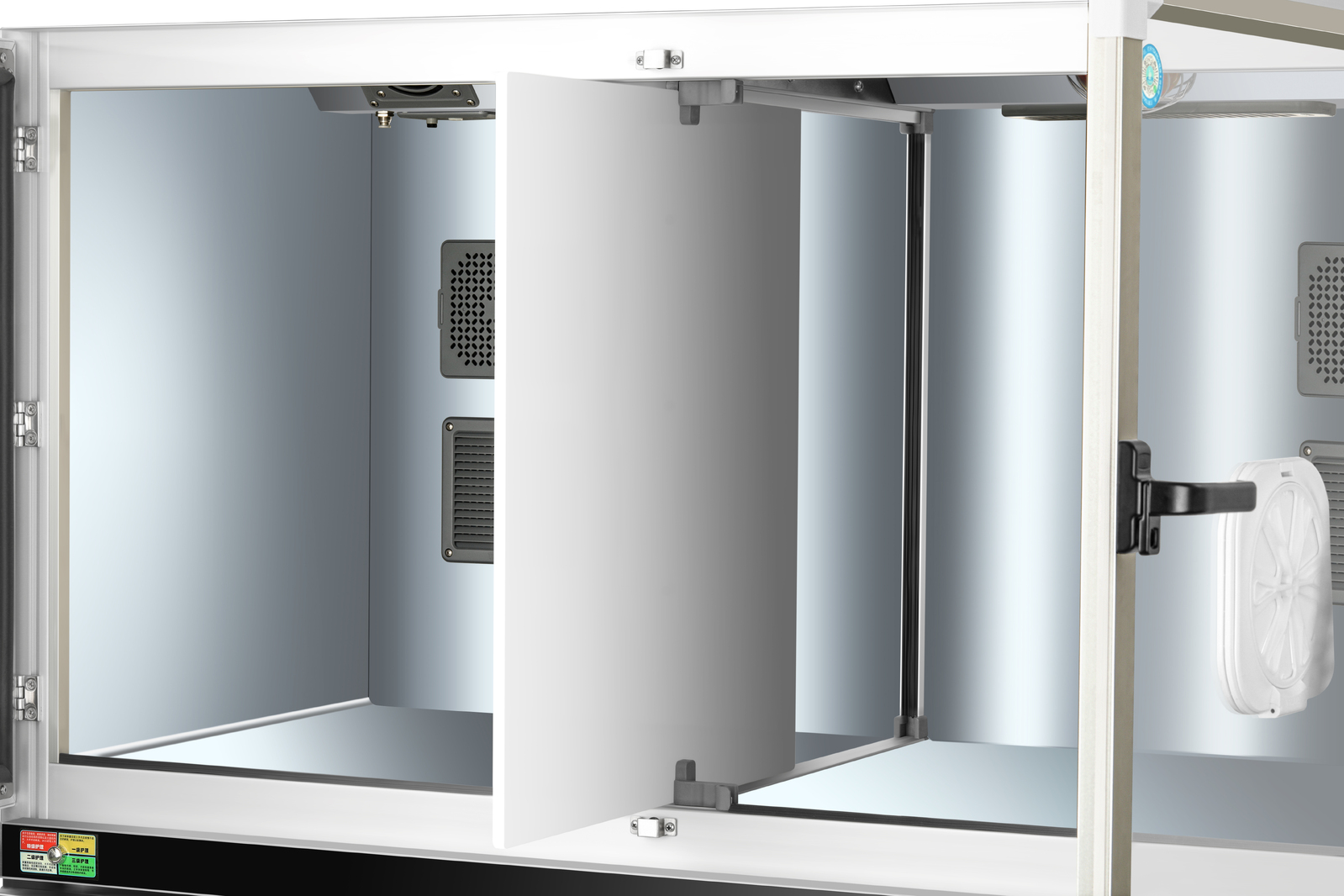

UC2008D with 2 x UC2008 Double Door and Double Cabine
